Wave-soldering pallet/carrier pallet cleaning agent

Published on :

Quickly dissolves stubborn flux residue.

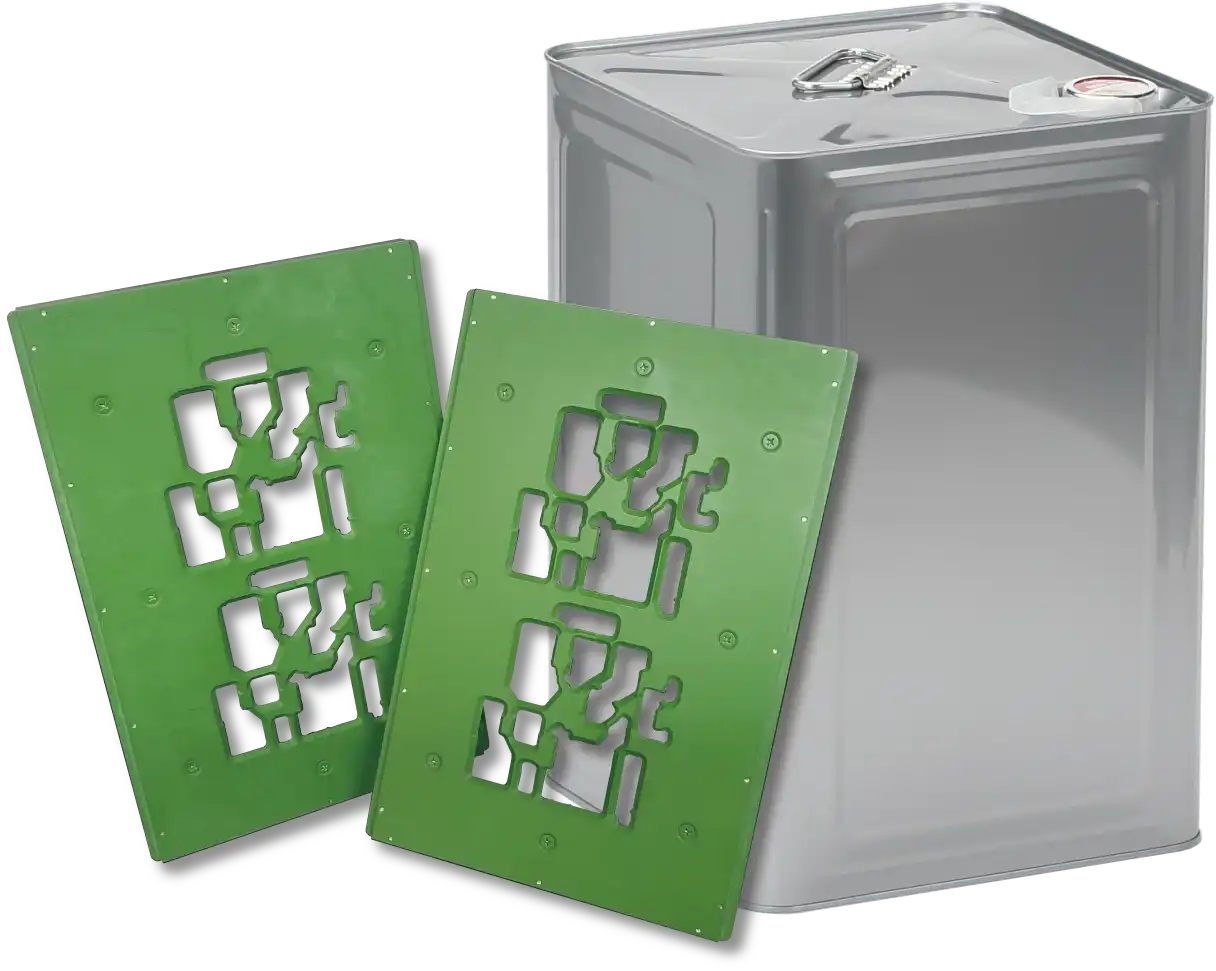

“PALLETCLEAN series”—Specialized cleaning agents for
flow pallets (carrier pallets) and reflow oven parts

These specialized cleaning agents are designed specifically for removing flux (residue) adhering to flow pallets (carrier pallets) and internal reflow oven parts.
Thanks to its high flux-dissolving power, it efficiently removes even stubborn residues that are difficult to remove with IPA. It reduces the burden of manual scrubbing, shortens cleaning time, and helps extend the service life of pallets.

Inquiries about Catalogs, SDS, and Cleaning Tests
Features
Case Studies
Cleaning Performance
Introduction Video
Cleaning Agent Lineup
Related Articles

Why Choose the PALLETCLEAN series

01

Powerfully dissolves stubborn flux residue

The PALLETCLEAN series is a specialized cleaning agent designed specifically to remove stubborn flux (residue) adhering to carrier pallets and parts inside reflow ovens. It efficiently dissolves residue that is difficult to remove with IPA, helping to reduce cleaning time and alleviate the burden of manual scrubbing.

02

Achieves low operating costs and simple solution management

By combining high flux-dissolving power with a long solution lifespan, it reduces the frequency of cleaning agent changes. Furthermore, since it is formulated without non-volatile components such as surfactants, a post-cleaning rinse is unnecessary. This reduces the burden of solution management and equipment operation, contributing to lower overall costs.

03

One-Stop Solutions from Cleaning Agents to Cleaning Equipment

KAKEN TECH not only develops cleaning agents but also independently develops and manufactures the “PALLETCLEANER ® ” pallet cleaning equipment. Combined with our extensive lineup of cleaning agents—including high-cleaning-power, low-VOC, and non-hazardous types—we can provide one-stop solutions covering cleaning agents, equipment, and cleaning conditions, enabling us to build pallet cleaning systems optimized for each customer’s specific challenges.

Common challenges

Are you struggling with quality issues or increased workload due to inadequate cleaning of carrier pallets?

  • Stubborn flux residue that IPA alone cannot remove
    Flux (residue) adhering to carrier pallets and parts inside reflow ovens cannot be sufficiently removed with IPA alone, resulting in significant time and labor spent scrubbing with brushes.
  • Increased time and labor costs associated with cleaning
    Every time pallets require regular cleaning, operators’ time is tied up, preventing them from devoting sufficient time to production and equipment maintenance. Reducing the man-hours required for cleaning has become a major challenge.
  • Quality issues caused by flux buildup
    Flux accumulates in the pallet openings, causing solder to creep up or unwanted solder to adhere. This leads to a decline in assembly quality and the occurrence of defects.
  • Balancing VOC Reduction and Regulatory Compliance with Cleaning Performance
    While companies wish to review their cleaning agents to reduce environmental impact and comply with the Fire Service Act, they also want to avoid a decline in operational efficiency and quality resulting from reduced cleaning power.

Cleaning Results

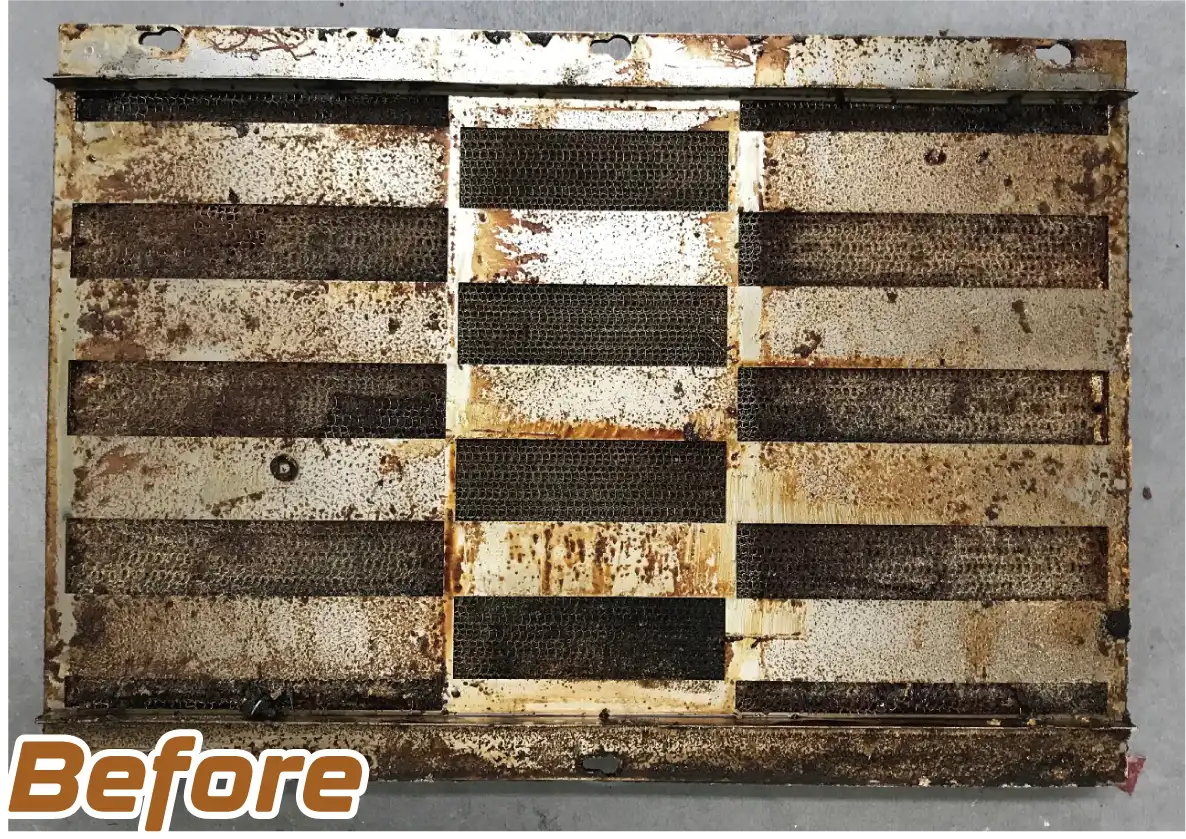

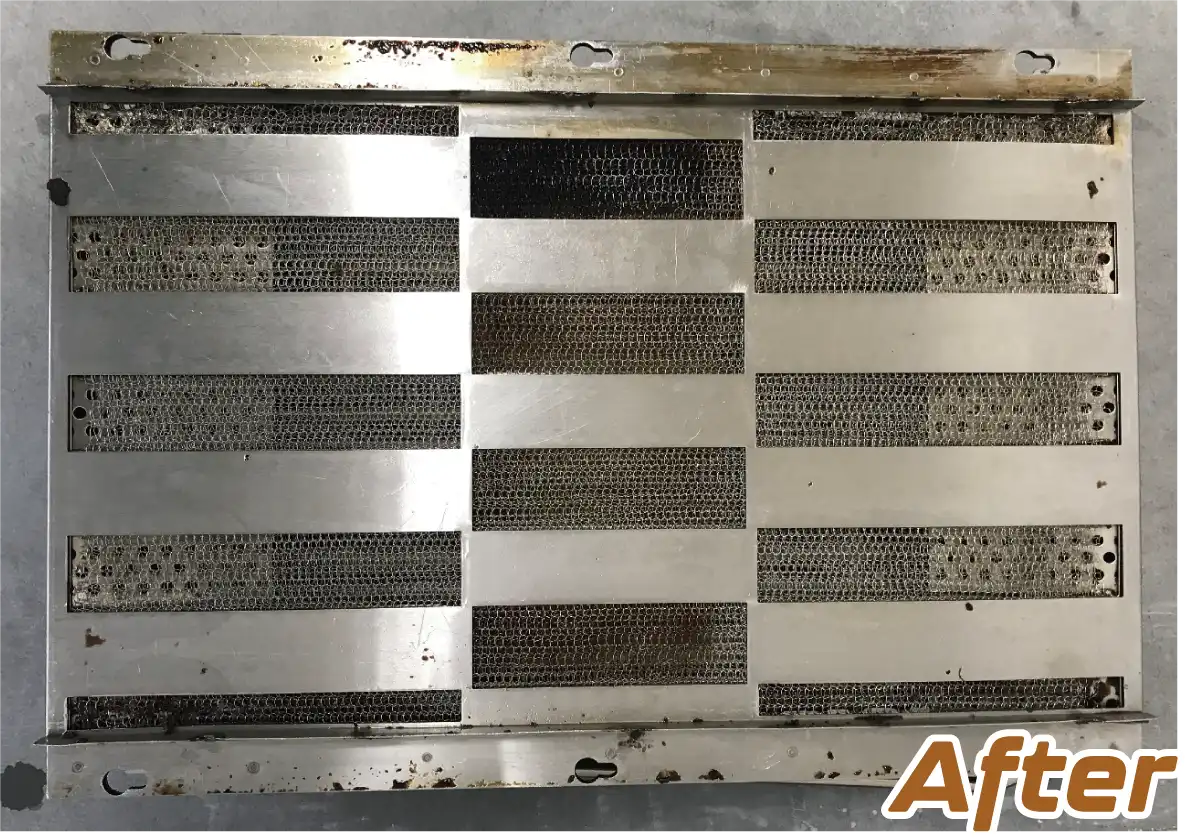

Cleaning Results for Reflow Oven Parts
リフロー炉パーツの洗浄前 炉フロー炉パーツの洗浄後
Cleaning Machine PALLETCLEANER®
PCLT
Cleaning Agent PALLETCLEAN PA Series
Cleaning Time 15 minutes
　　　 　　　 　　　

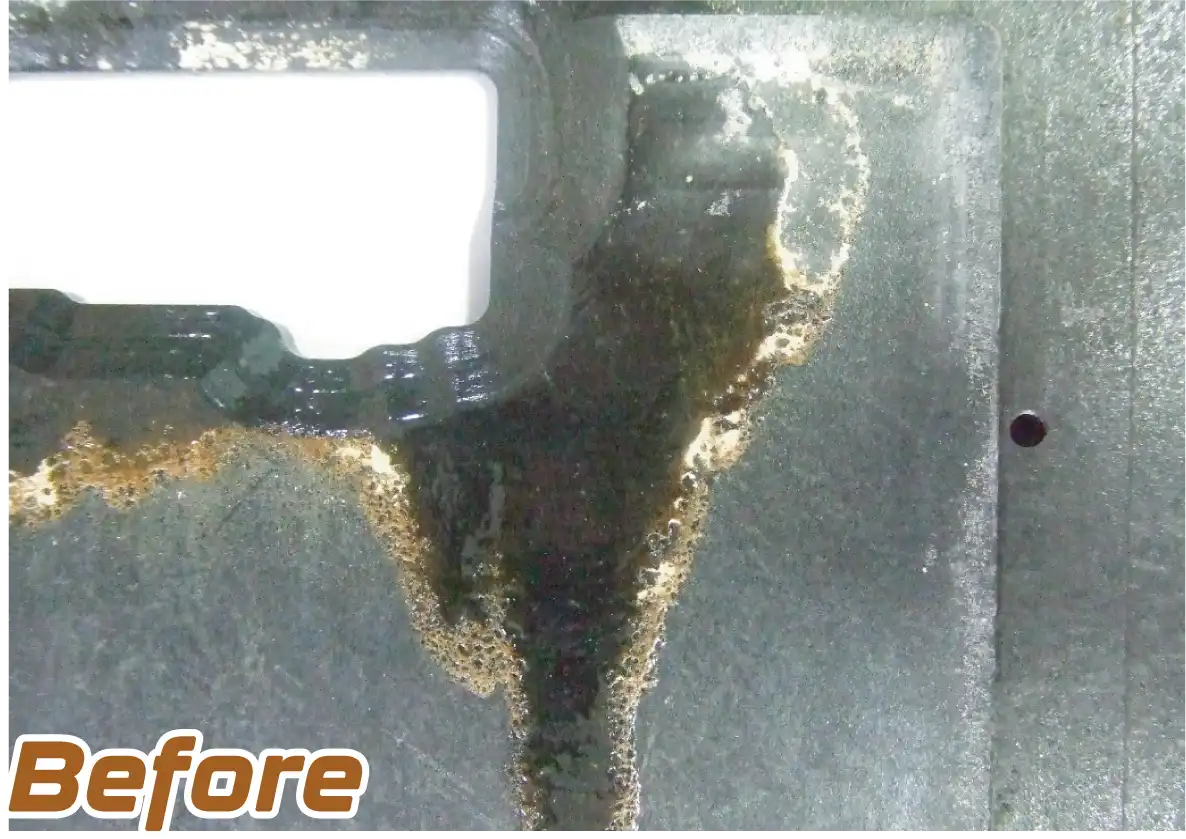

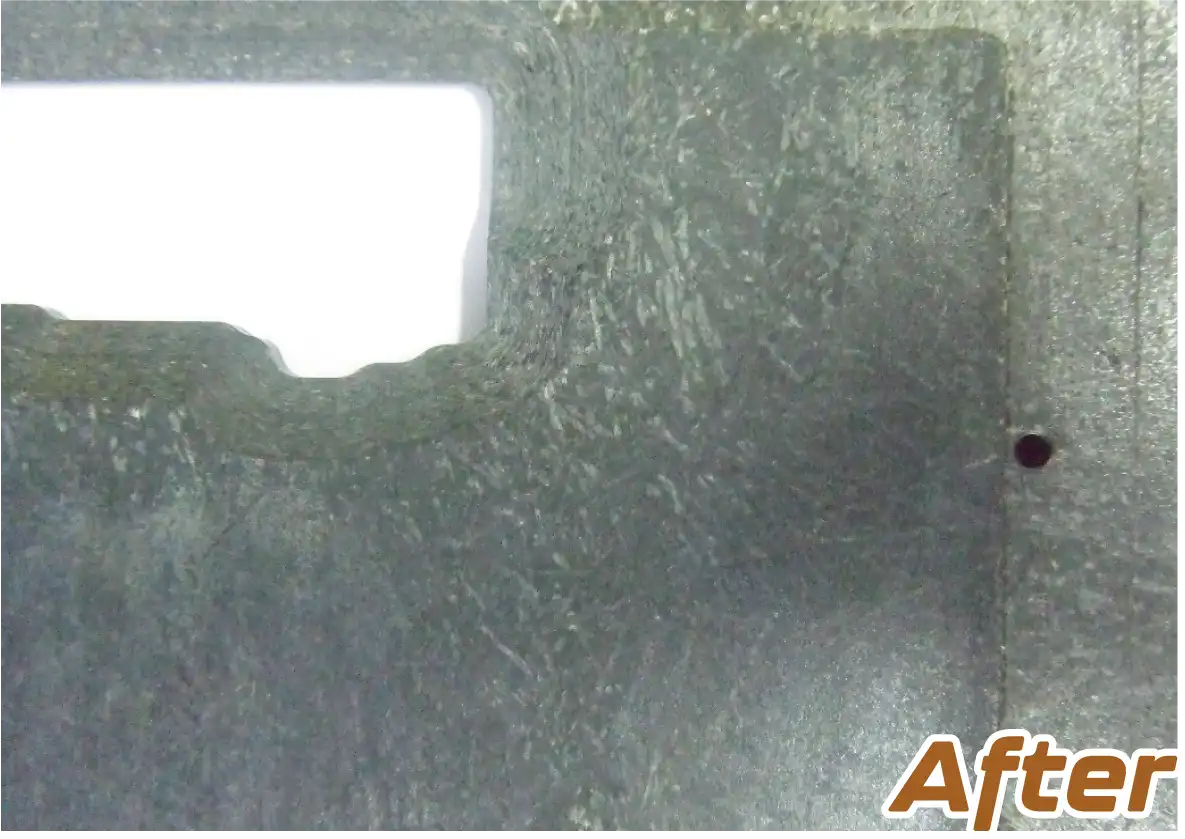

Carrier Pallet Cleaning Results (Openings)
フローパレットの洗浄前 フローパレットの洗浄後
Cleaning Machine PALLETCLEANER®
PCM
Cleaning Agent PALLETCLEAN PA Series
Cleaning Time 1 minute

Cleaning Demo Video ~Comparing Solubility Differences Between IPA and Pareclin~

IPA is commonly used in the assembly process, but it does not have strong dissolving power against flux adhering to pallets. As a result, it seems many people scrub the pallets vigorously with brushes to clean them, but this not only takes time and labor but may also damage the openings, shortening the pallet’s lifespan!
The Paleclin pallet cleaning agent has excellent flux-dissolving power! It dissolves even caked-on flux without the need for scrubbing. See the difference in dissolving power compared to IPA.

PALLETCLEAN Line-up

Item＼Product# PA-2850U PA-3200U PA-3643U PA-4450U
Dissolving property
Drying property
Low odor
Cleaning methods PALLETCLEANER
Immerse		 PALLETCLEANER PALLETCLEANER
Immerse
Ultrasonic		 PALLETCLEANER
Immerse
Ultrasonic
F.p. 51℃ 68℃ None None
UNRTDG Class3/UN No.1993/PGⅢ Not classified Not classified Not classified
VOC 100% 33% 60% 30%

[Remarks] Dissolving property：Good=☆☆☆～☆=Poor　　　　　Drying property：Good=☆☆☆～☆=poor 　　　　Low odor：Less odor=☆☆☆～☆=strong odor

High cleaning power type

Outstanding flux dissolving power! Strongly dissolves and removes adhered flux stains, contributing to improved work efficiency.

Product# Cleaning method F.p. VOC UNRTDG Package
PALLETCLEAN PA-2850U PALLETCLEANER
Immerse		 51℃ 100% Class3/UN No.1993/PGⅢ 17kg/UN can

Low VOC type

Compared to conventional solvent-based cleaning agents, you can significantly reduce VOC (Volatile Organic Compounds) while maintaining almost the same solubility of flux.

Product# Cleaning method F.p. VOC UNRTDG Package
PALLETCLEAN PA-3200U PALLETCLEAN 68℃ 33% Not classified 12kg/UN can

Non-dangerous goods type

Not classified as hazardous under UNRTDG! In addition to PA-4450, which has wide market share, we offer PA-3643U, a high-cleaning power type.
Since it has no flash point, it can be used in ultrasonic cleaning equipment.

Product# Cleaning method F.p. VOC UNRTDG Package
PALLETCLEAN PA-4450 PALLETCLEANER
Immerse
Ultrasonic		 None 30% Not classified 18kg/UN can
PALLETCLEAN PA-3643 PALLETCLEANER
Immerse
Ultrasonic		 None 60% Not classified 18kg/UN can

Related articles and products

Products information
Carrier pallet cleaning system, PALLETCLEANER
Regular cleaning of carrier pallets is necessary because flux adheres to the open edges of carrier pallets, and the adhered flux can cause solder to creep up and adhere to the masked areas. PALLETCLEANER & PALLETCLEAN, specialized for cleaning carrier pallets, greatly contributes to stable quality.
